Ultra-Link Processing™
A first in wireless device monitoring
Ultra-Link Processing™ is the first wireless system purpose-built to solve the challenges of device monitoring in metro-scale deployments and other challenging radio environments. The technology addresses problems, such as coverage, capacity, robustness, and coexistence that can limit the large-scale deployment of wireless devices. The fundamental development of the ULP technology fills a massive gap in wireless performance; the void between existing communications platforms of higher data rate licensed spectrum cellular systems and free spectrum short-range wireless radio platforms (e.g., 900 MHz Frequency Hopping Spread Spectrum (FHSS), 802.11, 802.15.4) with mesh networking.
Ultra-Link Processing™ represents a significant technological breakthrough in wireless signal processing
On-Ramp Wireless has now commercialized this core innovation. These are the key system highlights, which set this technology apart:
- Greater than 40 miles (65 km) line-of-sight range, and up to 10 miles (16 km) to underground locations.
- RPMA, a unique multiple access method with order of magnitude capacity improvements, and demodulation of up to a thousand incoming signals, below the noise floor, every frame.
- Receive sensitivity of -142 dBm.
- Each Access Point supports up to 64,000 endpoints.
- Access Point aggregate throughput of 120 kbps (10 Mb/day).
- Each ULP Gateway can support hundreds of Access Points.
- Ultra low power consumption, allowing up to a 20-year battery-life for water meter applications.
- Security has undergone comprehensive 3rd party validation.
- Worldwide applicability in the license free spectrum (adaptive to local regulatory regimes).
- Simple and flexible integration with back-end automation systems, such as OMS, DMS and MDMS systems, process automation (e.g. OSIsoft PI™, Modbus™), and others.
- Intelligent Data Integrity throughout the entire data path.
- Simple and standardized wireless module integration.
When combining all these advantages, the result is a system that provides the lowest total cost of ownership for any wide area device monitoring application.

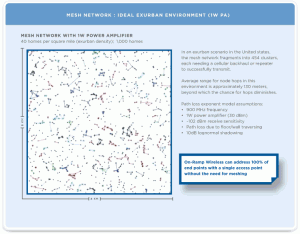

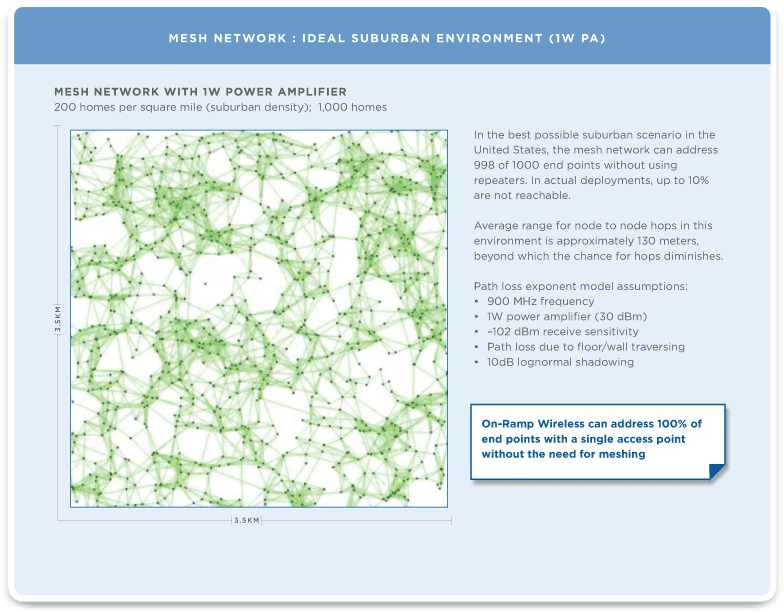

Wireless performance in different environments
Click to enlarge

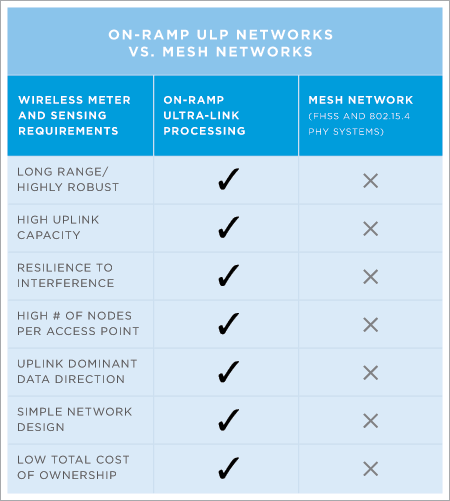

ULP v. Mesh Networks
Click to enlarge
